SNUS PACKAGING MACHINE SINGLE LANE
FORMING, FILLING AND SEALING MACHINE SINGLE LANE POUCH MAKER FOR SMALL POTIONS ORAL TOBACCO
Category:
Keywords:
Contact:
David |
Simon |
- 产品描述
-
Operative range:
Small portion packages
Range of products:
Wet tobacco (Moisture 15-40%)
Dry granulate powder (Moisture ≤15%)
Description of operation:
HCCY300 is a fully automatic vertically operating, forming, filling and sealing high speed machine for production of smoke-free filter foil portion with nicotine pouches(snus) by a small tubular bags that three side seal attwo ends and the back so called “Stickpacks”.
The fleece is drawn off from the roll and then it is formed as atubular bag, the powder is filled then, sealed and cut off.
Technical parameters:
Sealing Method
Heat sealer / Ultrasonic
Speed
Heat sealer: upto 300 pouches/min
Ultrasonic : 200-250 pouchese/minPouch length
25-50mm
Pouch width
12-20mm
Filling volume
0.4-1.5ml(g)
Filling accuracy
土7%
Diameter of the film reel
≤400mm
Width of the film reel
75-76mm
Packaging material
Nonwoven fleece
Color standard
Stainless steel
Power
approx.3kw/220V/50Hz
Weight
approx.450kg

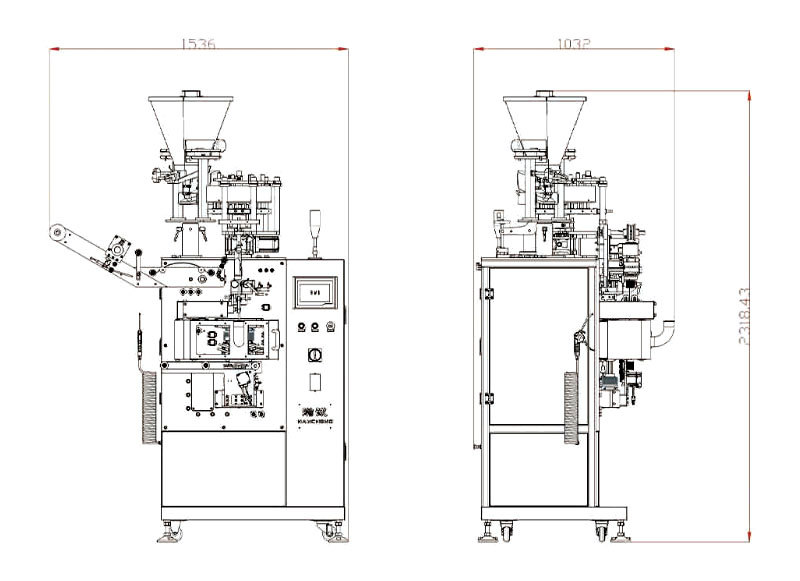

Dimension
L1550mm*W950mm*H2210mm
